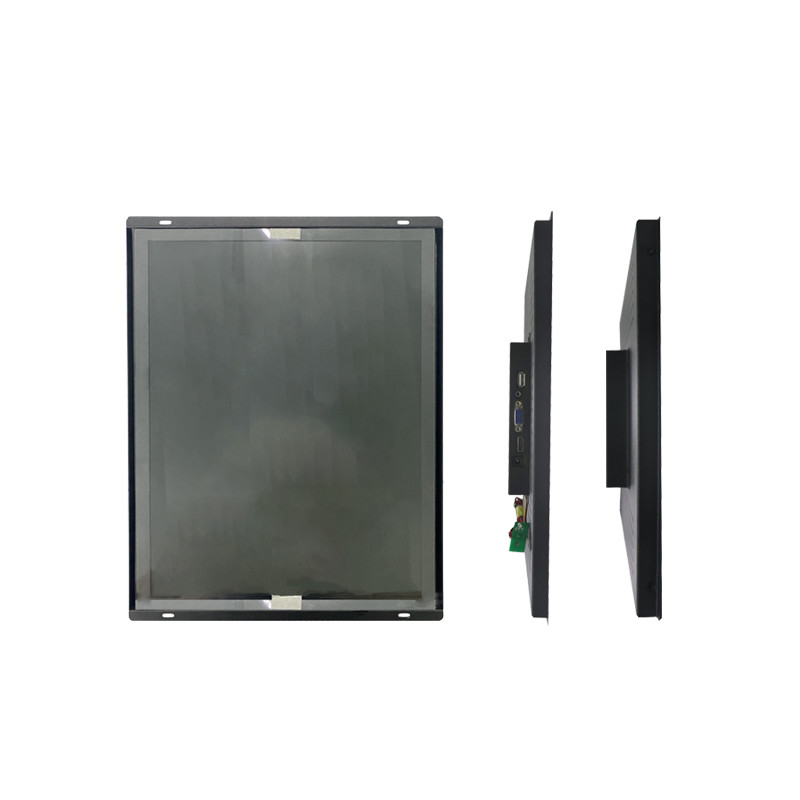

27 Inch 1000nits Industrial Touch Open Frame Lcd Panel Display
Screen
With a great brightness of max5,000 cd/m, The Fengshi KTseries
clearly delivers contentsand
attracts public attention,which is the ultimate display foroutdoor
visibility.
Size Range: 10.1-98inch
OC Type: High Tni/ Normal
Brightness Range:700-5000nits
Mainboard: AD board/ Android/ X86
• Smart Brightness Control
The screen brightness is automatically adjusted depending on the
ambient light. The
brightness is increased in light for better visibility, while it is
decreased in darkness for
efficient power management.
• VESA Mounting, Easy Installation
The open frame display is designed with VESA mounting holes, it can
be installed at any
orientation, as well as in any housing or cabinet. Easy to make it
a finished outdoor display.
• 24/7 Operation Supported
Business never sleep, to make advantage of superior components to
ensure a higher level
of quality, you can count on this range of models for complete
around-the-c lock reliability,
it's designed for 24/7 operation.
Parameter
| Specifications | FSKT270 |
| Screen Size | 27inch open frame lcd display |
| Panel Technology | IPS, |
| Aspect Ratio | 16:9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 1,500 cd/m2 |
| Contrast Ratio | 1,300:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Hard coating (2H), Reflection 2.0% (Max.) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
| Input | HDMI, VGA, USB, Audio |
| External Control | RS232C Optional |
| Bezel Color | Black |
| Bezel Width | 13.4 mm (T/L/R), 17.7 mm (B) |
Monitor Dimension (W x H x D) | 626.80x 369.50 x 42.07mm |
style | VESATM Standard Mount Interface |
| Operation Temperature | 0~45C |
| Operation Humidity | 10% to 80% |
| Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Consumption | | 150 W |
| Basic | Remote control(w/o battery), AC power plug |
| WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements. In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI,
VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan
system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped
within 2 weeks.
