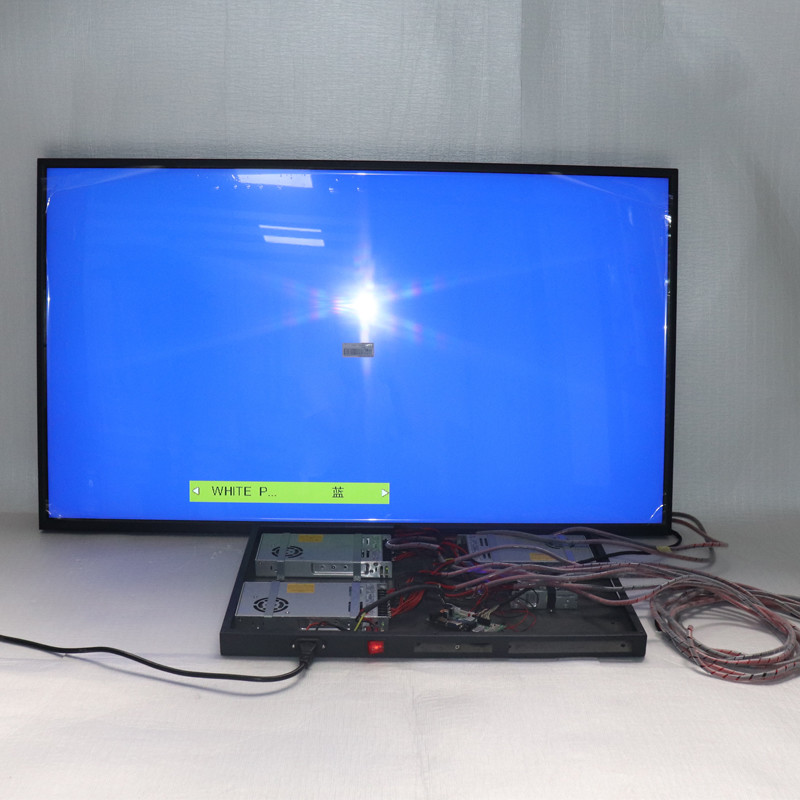

49 Inch 3000nit High Brightness TFT 1920*1080 2K DLED Design
Industrial Lcd Panel
The FSKT490 is a Color Active Matrix Liquid Crystal Display with an
integral the Source PCB
and Gate implanted on Panel (GIP). The matrix employs a-Si Thin
Film Transistor as the active
element.
It is a transmissive type display operating in the normally black
mode. It has a 48.5inch diagonally
measured active display area with WUXGA resolution (1080 vertical
by 1920 horizontal pixel array).
Each pixel is divided into Red, Green, Blue and White sub-pixels or
dots which are arranged in vertical
stripes.Gray scale or the luminance of the sub-pixel color is
determined with a 10bit(D) gray scale
signal for each dot.Therefore, it can present a palette of more
than 1.07B colors.It has been designed
to apply the 10-bit 2-port LVDS interface.
◉ LED backlit
Direct LED Backlight
More inform brightness
◉ FHD or UHD
Support Full HD 1080p resolution
Support Ultra HD 2160p resolution
◉ Brightness
We provide 700/800/1000/1500/2000/25003000/5000nit brightness as
your required.
◉ Auto Brightness
Auto ajustment according toenvironment induction.
Parameter
| Item | 49.0'' high brightness LCD panel |
| Model | FS490-D20-Z |
| Screen Size | 49 inches |
| Display Area | 1073.8*604mm |
| Outline Dimenssion | 1106.17*640.23*43.5mm |
| Panel Type | High brightness LCD with WLED |
| Configuration | RGBW Vertical Stripe |
| Resolution | 1920(RGB)×1080 , FHD |
| Brightness | 2000nits |
| Aspect Ratio | 16:9 |
| Constrast Ratio | 1200:1 (Typ.) (TM) |
| Response Time | 6ms (Typ.)(G to G) |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in sunlight
readable LCD panel/LCM since
2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays:LCD Panel+PSU+AD board(optional
interface, eg:HDMI, VGA,
DVI, USB...)+Touch optional.
(3) Window Facing Displays:LCD Panel+PSU+AD board (network board
optional)+fan system
+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A:Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each high brightness
sunlight readable lcd display will pass through strict quality
inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: High brightness sunlight readable lcd display Sample testing is
acceptable, the price is negotiable
for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped with 2 weeks.
