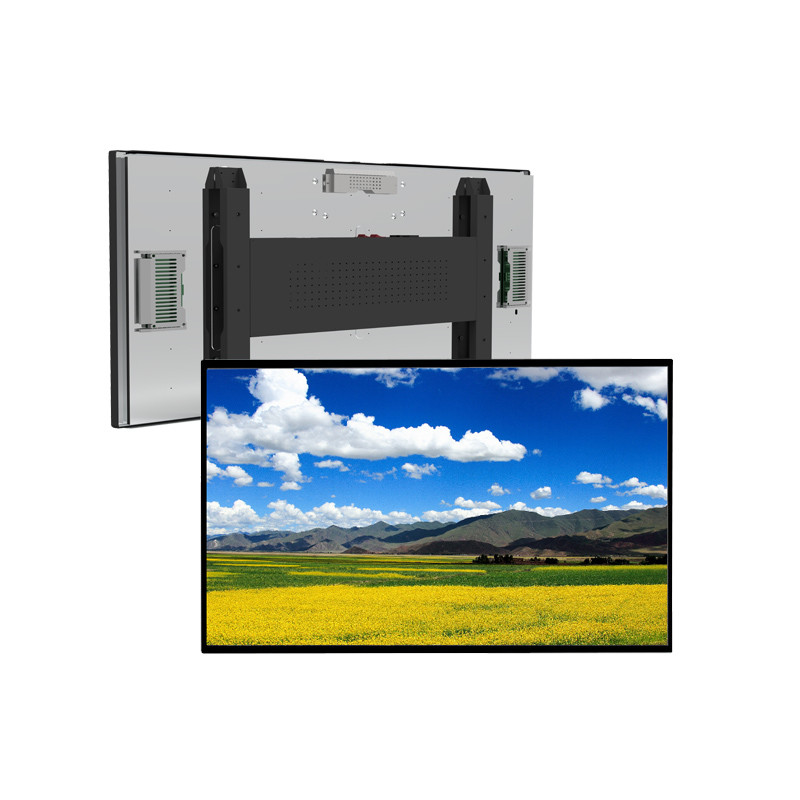

32 Inch 1920*1080pixel Smart Brightness Control Tft Lcd Touch Open
Frame Lcd Display Screen Kiosk
◉ High Visibility Under The Sunlight
With a great brightness of 2000/3000 nits. HD series clearly
delivers contents and
attracts public attention, which is ultimate display for outdoor
visibility.
◉ Smart Brightness Control
The screen brightness is automatically adjusted depending on the
ambient light.
The brightness is increased in light for better visibility, while
it is decreased in darkness
for efficient power management.
◉ VESA Mounting, Embeded Installation
The open frame display is designed with VESA mounting holes, it can
be installed at any
orientation, as well as in any housing or cabinet. Easy to make it
a finished outdoor display.
◉ High Tni 110℃ LCD
The industrial grade open frame display can choose a high Tni110C
LCD open cell, it has
superior durability withstand the hard weather condition, and will be n0
black mura occurs
when it exposes under the direct sunlight.
◉ Front IP66, Optical Bonded
The optically bonded lcd display has adopted a front protective
glass with PCAP touch bond
the open cell and front glass. The front screen is sealed with IP66
design,which is an
essential feature for outdoor application.
◉ Plug&Play
Open frame monitor with optical bonding, integrate the industrial
grade power supply unit and
mainboard inside it makes the open frame display easy to install
and support play and play.
Parameter
| Specifications | FSKT320 |
|---|
| Screen Size | 32inch open frame lcd display |
|---|
| Panel Technology | IPS, |
|---|
| Aspect Ratio | 16:9 |
|---|
| Native Resolution | 1,920 x 1,080 (FHD) |
|---|
| Brightness | 2,000 cd/m2 |
|---|
| Contrast Ratio | 1,300:1 |
|---|
| Viewing Angle (H x V) | 178 x 178 |
|---|
| Surface Treatment | Hard coating (2H), Reflection 2.0% (Max.) |
|---|
| Lifetime | 50,000 Hrs Min. |
|---|
| Operation Hours | 24 Hrs |
|---|
| Orientation | Landscape & Portrait |
|---|
| Front Glass | 6mm AG/AR/Tempered Glass |
|---|
| Touch Function | Yes |
|---|
| Input | HDMI, VGA, USB, Audio |
|---|
| Output | / |
|---|
| External Control | RS232C Optional |
|---|
| Bezel Color | Black |
|---|
| Bezel Width | 28.5mm (T/B), 28.5mm (L/R) |
|---|
Monitor Dimension (W x H x D) | 756.0x 449.8x 71.2 mm |
|---|
VESATM Standard Mount Interface | 380 x 230 mm, 4 x M6 |
|---|
| Operation Temperature | 0~45C |
|---|
| Operation Humidity | 10% to 80% |
|---|
| Power Type | Built-In Power |
|---|
| Power Supply | 100-240 V~, 50/60 Hz |
|---|
| Power Consumption | Typ. / Max. | 180 W |
|---|
| Smart Energy Saving | / |
|---|
| Safety | / |
|---|
| EMC | CE |
|---|
| Basic | Remote control(w/o battery), AC power plug |
|---|
| WARRANTY | 18Month, Free spare parts, Technical support |
|---|
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements. In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI,
VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan
system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped
within 2 weeks.
