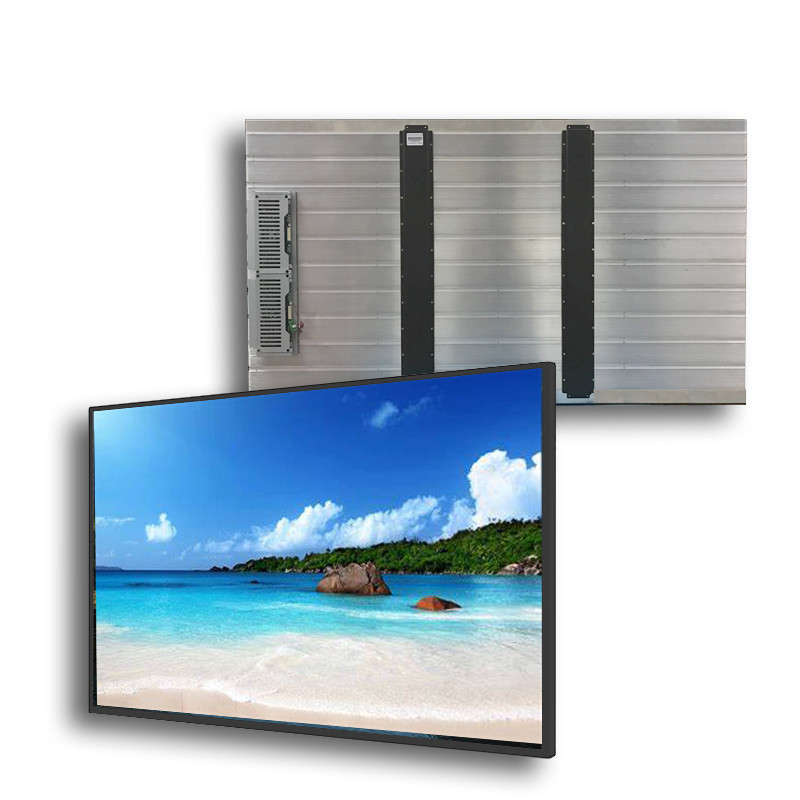

55 Inch High Brightness 5000nits Industrial Open Frame Sunlight
Readable LCD Panel Monitors
55inch Sunlight Readable LCD Panel Product Description
Fengshi’s Open frame monitors are display devices that are widely
used in industrial and commercial
applications. These monitors do not have an enclosure or casing,
but instead, they are designed to be
integrated into custom enclosures or larger systems.This feature
makes them ideal for space-saving
and customized installations where flexibility and versatility are
crucial. Open frame monitors come in
various sizes, resolutions, and technologies.
55inch Sunlight Readable LCD Panel Benefits of Open Frame Monitors
● Flexible design allows it to easily fit into pre-existing
structural housings
● Customize enclosures for custom projects or specific industry
requirements
● Rugged durable metal construction and heavy-duty steel
● Mounting solutions for panel / VESA / wall mount
● Suited for a wide range of industrial and commercial applications
55inch Sunlight Readable LCD Panel Applications of Open Frame Monitors
● Digital Signage / Kiosks / Self-Service
● Point of Sale (POS) Systems
● ATM Machines / Vending Machines
● Industrial Monitoring Applications / Surveillance Systems
● Food Processing Plants / Manufacturing Facilities
55inch Sunlight Readable LCD Panel Parameter
| Specifications | FSKT550 |
| Screen Size | 55inch open frame lcd display |
| Panel Technology | IPS, |
| Aspect Ratio | 16:9 |
| Native Resolution | 3,840X2,160 (UHD) |
| Brightness | 2,000 cd/m2 |
| Contrast Ratio | 1,300:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Hard coating (2H), Reflection 2.0% (Max.) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
| Front Glass | 6mm AG/AR/Tempered Glass |
| Touch Function | No |
| Input | HDMI*2, USB |
| Output | / |
| External Control | RS232C Optional |
| Bezel Color | Black |
| Bezel Width | 34.5 mm (T/B), 34.5 mm (L/R) |
Monitor Dimension (W x H x D) | 1010.2x 598.4x 89.0 mm |
VESATM Standard Mount Interface | 400 x 250 mm, 8 x M6 |
| Operation Temperature | 0~45C |
| Operation Humidity | 10% to 80% |
| Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Consumption | Typ. / Max. | 180 W |
| Smart Energy Saving | / |
| Safety | / |
| EMC | CE |
| Basic | Remote control(w/o battery), AC power plug |
| WARRANTY | 18Month, Free spare parts, Technical support |
55inch Sunlight Readable LCD Panel FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements. In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI,
VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan
system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped
within 2 weeks.
