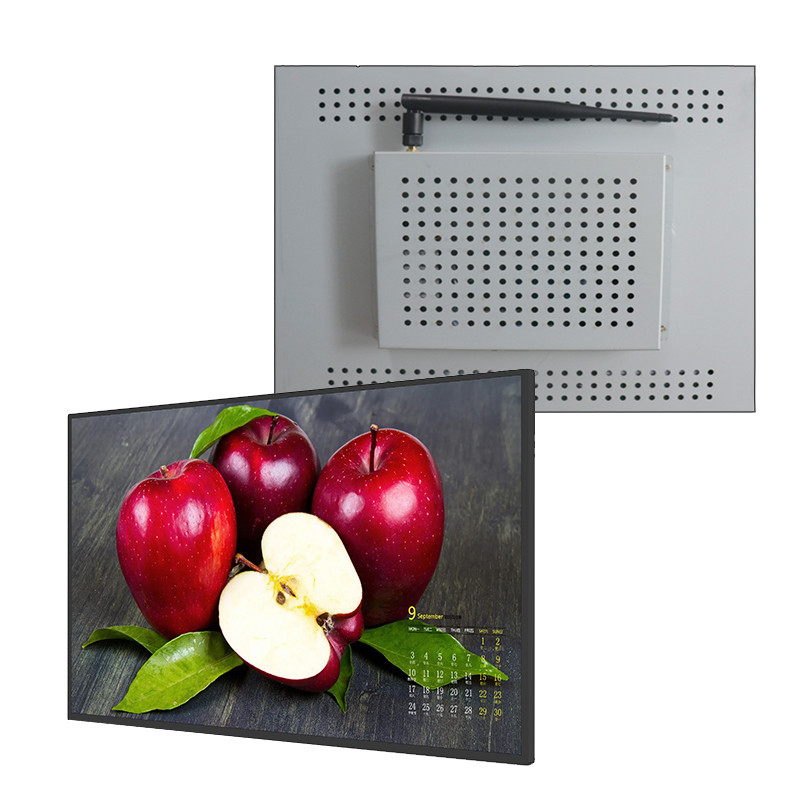

15 Inch Indoor Digital Display 1000nits High Brightness Open Fram
Lcd Monitor
15 inch Open Fram Lcd Monitor Description
The FSKT150 is a 15 inch sunlight readable open frame LCD, with
high brightness 1500
nits and high color saturation, it produce sharp images, crisp text
and lifelike colors. The
LED backlight technology ensures high reliability and low power
consumption, widely used
for outdoor application, such as outdoor totem, outdoor kiosk,
factory automation, military,
transportation.
15 inch Open Fram Lcd Monitor Key Features
◉ High Brightness: 1500nits
◉ Sunlight Readable
◉ LED Backlight
◉ Low Power Consumption
◉ Slim Bezel
◉ High Color Saturation
◉ BL MTBF: 50,000 hours
15 inch Open Fram Lcd Monitor Parameter
Specifications | FSKT150 |
Screen Size | 15inch open frame lcd monitor |
Panel Technology | IPS, |
Aspect Ratio | 16:9 |
Native Resolution | 1,920 x 1,080 (FHD) |
Brightness | 1,000 cd/m2 |
Contrast Ratio | 1,300:1 |
Viewing Angle (H x V) | 178 x 178 |
Surface Treatment | Hard coating (2H), Reflection 2.0% (Max.) |
Lifetime | 50,000 Hrs Min. |
Operation Hours | 24 Hrs |
Orientation | Landscape & Portrait |
Input | HDMI, VGA, USB, Audio |
Output | / |
External Control | RS232C Optional |
Bezel Color | Black |
Bezel Width | 17.85 mm (T/B), 19.35 mm (L/R) |
Monitor Dimension (W x H x D) | 346.00*267.00*35.00mm |
VESATM Standard Mount Interface | see drawing |
Operation Temperature | 0~45C |
Operation Humidity | 10% to 80% |
Power Type | Built-In Power |
Power Supply | 100-240 V~, 50/60 Hz |
Power Consumption | Typ. / Max. | 150 W |
Smart Energy Saving | / |
Safety | / |
EMC | CE |
Basic | Remote control(w/o battery), AC power plug |
WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements. In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI,
VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan
system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped
within 2 weeks.
