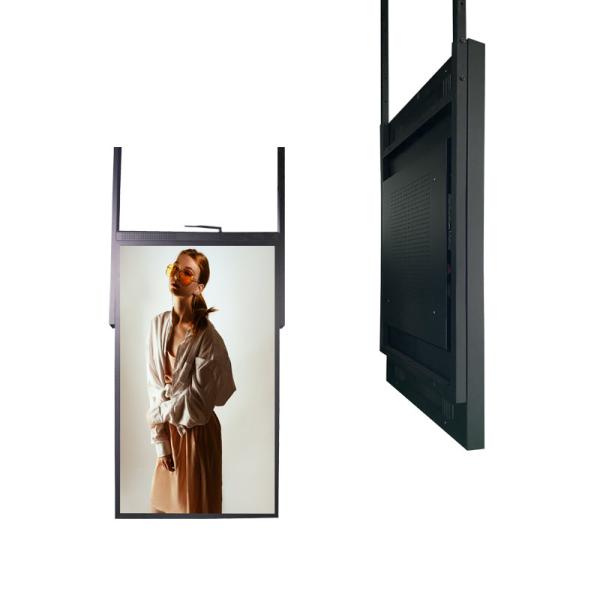

window facing lcd display screen Feature
High Visibility Under Strong Sunlight
With stunning high brightness of 2,500 nits (Typ.), FSHD550 outdoor
display highlights the contents clearly
beyond the window. In addition, its outstanding visibility can
deliver a variety of information even to those
wearing polarized sunglasses.
Wide Viewing Angle
Customers can enjoy the content vividly from various angle of the
window as they walk. The IPS panel
enables FSHD550 to have a wide viewing angle.
Quiet Fanless Design
By eliminating the need for a cooling fan, FSHD550 is quieter than
that of daily conversation (50db). Its low
operating noise level is suitable for the in-window environment.
Parameter
| Screen Size | 55" |
| Panel Technology | IPS, |
| Aspect Ratio | 16:09 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 3,500 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Hard coating (2H), Reflection 1.5% (Typ.) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
| Input | HDMI, VGA, USB, Audio |
| Output | / |
| External Control | RS232C Optional |
| Bezel Color | Black |
| Bezel Width | 18.0 mm (T/B), 18.0 mm (L/R) |
| Monitor Dimension (W x H x D) | 980.0 x 568.0 x 85.0 mm |
| Weight (Head) | 31.0 kg |
| Carton Dimensions (W x H x D) | 1,390 x 900 x 230 mm |
| Packed Weight | 33.0 kg |
| VESATM Standard Mount Interface | 400 x 400 mm, 4 x M8 |
| Operation Temperature | 0°C to 45°C |
| Operation Humidity | 10% to 80% |
| Power Type | Built-In Power |
| Power Supply | 100-240V~, 50/60Hz |
| Power | Typ. / Max. | 162 W / 180 W |
| Consumption | Smart Energy Saving | / |
| Safety | / |
| EMC | FCC Class "A" / CE |
| Optional | Mounting Bracket: wall mount, floor stand, roof hanging |
| Basic | Remote control(w/o battery) ,AC power plug |
| WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high
brightness storefront single sided
lcd display since 2016 located in Shenzhen.
2. Q: How long is the warranty for window facing lcd display?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements. In order to support different customers, we are able
to supply:
High Brightness LCD Panel: LCD panel+led driver board+auto dimming
sensor; Open Frame
LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI,
VGA, DVI, USB...)+
Touch optional, window Facing Displays: LCD Panel+PSU+AD board
(network board optional)
+fan system+ temperature control board+housing, Full Outdoor
Displays: customized.
eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each high
brightness LCD display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification for all window display.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Stroefront LCD display sample testing is acceptable, the price
is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
