43″ 700nit~3000nits Brightness Hanging LCD Digital Display Double
Sided LCD Advertising Screen For Businesses
About this item
Our 43" digital hanging sign. This display screen is a brilliant
solution for businesses
looking to display content from videos to slide shows and even
cloud based data like
trading charts and web pages.

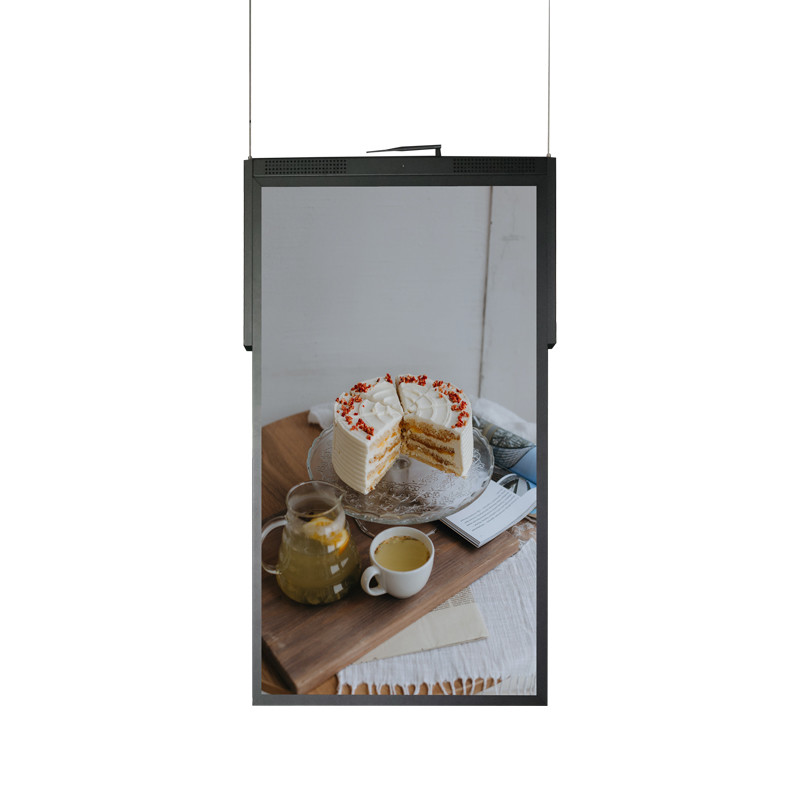

43" Hanging LCD Digital Display
High Brightness
The window-facing side's 3000-nit brightness helpsmaintain picture
integrity regardless
of sunlight, while thein-store side features 700 nits to deliver
information clearly.
Visible with Polarized Sunglasses
QWp* technology enables clear visibility even when the viewer is
wearingpolarized sunglasses.
Fan cooling Design
By the built-in cooling fans, we have made the HD-D series an ideal
choice for the in-window environment.
Its operating noise level is under 25dB, which is quieter than that
of typicaldaily conversation.
High temperature LCD panel
Has a professional high temperature (110'C ) TNI LCD Which can
leave a deep impres sion even in
the brightest sunlight, without "black mura Designed with superior
durability for all weather conditions
Industry-leading widest operating temperature range for worry-free
installationEnergy-saving LED
design, low maintenance cost and high return on investment
Smart Brightness Control
The auto brightness sensor and preset time scheduler save power
consumption by adjusting the brightness.
Parameter
| Specifications | FSHB430 hanging lcd display |
| PANEL | Screen Size | 43" |
| Panel Technology | IPS, |
| Aspect Ratio | 16:09 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 2,500 + 700 cd/m2 |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Portrait |
| Mainboard | OS | Android 7.1 |
| CPU | Rockchip RK3288, 4-core ARM Cortex A17 clocked at 1.6GHz |
| GPU | 4-core ARM Mali-T764 |
| RAM | DDR3 2GB (Optional 4GB) |
| Storage | eMMC 8GB (Optional 32GB), Note: Support TF / USB expansion |
| CONNECTIVITY | Input | HDMI, RJ45, VGA, USBx2, Audio |
| Output | / |
| External Control | CMS |
| PHYSICAL SPECIFICATION | Bezel Color | Black |
| Bezel Width | 25.0 mm (T/B), 25.0 mm (L/R) |
| Monitor Dimension (W x H x D) | *** mm |
| Weight (Include Ceiling Bracket) | 28.0 kg |
| Carton Dimensions (W x H x D) | *** mm |
| Packed Weight | 40 kg |
| VESATM Standard Mount Interface | See Drawing |
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C |
|
| Operation Humidity | 10% to 80% |
| POWER | Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Consumption | Typ. / Max. | 216 W / 240 W |
| Smart Energy Saving | / |
| STANDARD (CERTIFICATION) | Safety | / |
| EMC | FCC Class "A" / CE |
| ACCESSORIES | Optional | Stand Mounts Bracket |
| Basic | Remote control(w/o battery), AC power plug, Ceiling Mounts |
| WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
