49" Wall Hanging IPS Double Sided Advertising LCD Window Shop
Advertising Display

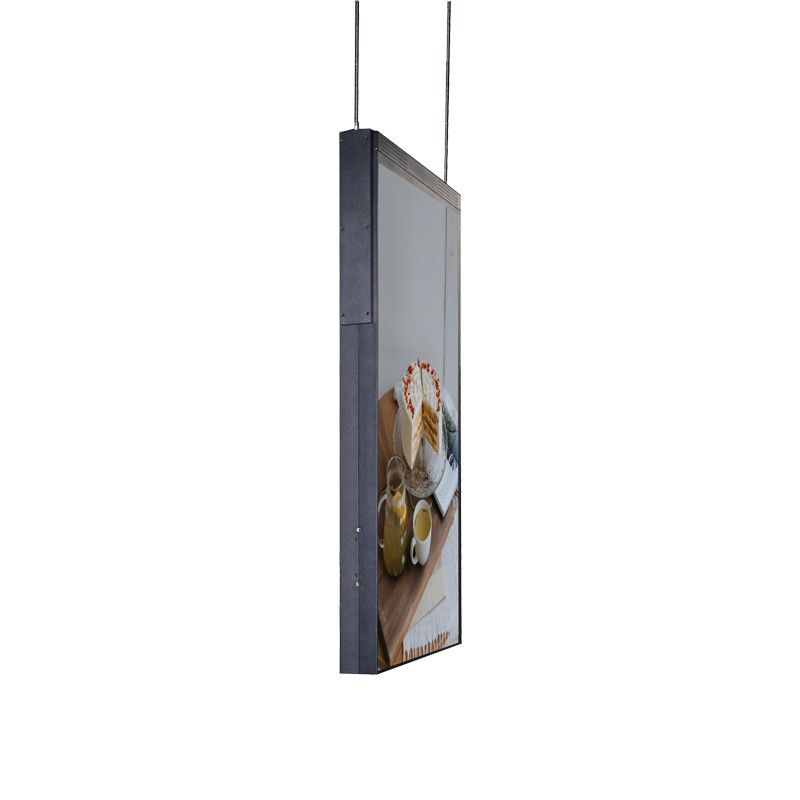

49" Wall Hanging LCD Window Shop Advertising Display
Our 43" digital hanging sign. This display screen is a brilliant
solution for businesses
looking to display content from videos to slide shows and even
cloud based data like
trading charts and web pages.
43" Hanging LCD Digital Display Feature
◉ High Brightness
The window-facing side's 3000-nit brightness helpsmaintain picture
integrity regardless
of sunlight, while thein-store side features 700 nits to deliver
information clearly.
◉ Visible with Polarized Sunglasses
QWp* technology enables clear visibility even when the viewer is
wearingpolarized sunglasses.
◉ Fan cooling Design
By the built-in cooling fans, we have made the HD-D series an ideal
choice for the in-window environment.
Its operating noise level is under 25dB, which is quieter than that
of typicaldaily conversation.
◉ High temperature LCD panel
Has a professional high temperature (110'C ) TNI LCD Which can
leave a deep impres sion even in
the brightest sunlight, without "black mura Designed with superior
durability for all weather conditions
Industry-leading widest operating temperature range for worry-free
installationEnergy-saving LED
design, low maintenance cost and high return on investment
◉ Smart Brightness Control
The auto brightness sensor and preset time scheduler save power
consumption by adjusting the brightness.
Parameter
| PANEL | 49''(48.5''/123.19cm) hanging lcd display |
| IPS, |
| 16:09 |
| 1,920 x 1,080 (FHD) |
| 2,500 + 700 cd/m2 |
| 1,300:1 |
| 178 x 178 |
| Hard coating (2H), Reflection 2.0% (Max.) |
| 50,000 Hrs Min. |
| 24 Hrs |
| Portrait |
| Mainboard | Android 7.1 |
| Rockchip RK3288, 4-core ARM Cortex A17 clocked at 1.6GHz |
| 4-core ARM Mali-T764 |
| DDR3 2GB (Optional 4GB) |
| eMMC 8GB (Optional 32GB), Note: Support TF / USB expansion |
| CONNECTIVITY | HDMI, RJ45, VGA, USBx2, Audio |
| / |
| CMS |
| PHYSICAL SPECIFICATION | Black |
| 25.0 mm (T/B), 25.0 mm (L/R) |
| 1,166.9*656.0*80.0 mm (display) |
| 32.0 kg |
| 1360 x 840 x 230 mm (carton box) |
| 46 kg |
| See Drawing |
| ENVIRONMENTAL CONDITIONS | 0°C to 45°C |
| 10% to 80% |
| POWER | Built-In Power |
| 100-240 V~, 50/60 Hz |
| 300 W / 330 W |
| / |
| STANDARD (CERTIFICATION) | / |
| FCC Class "A" / CE |
| ACCESSORIES | Stand Mounts Bracket |
| Remote control(w/o battery), AC power plug, Ceiling Mounts |
| WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
