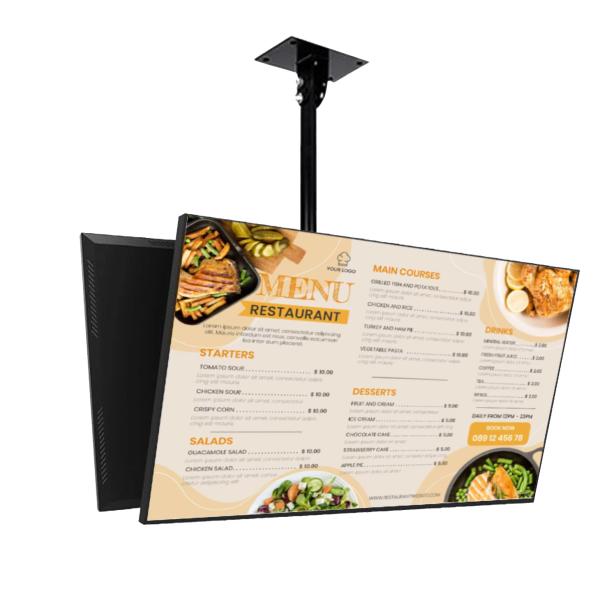

8mm Ultra-Narrow Restaurant Indoor Fast Food Advertising Digital
Display Menu Board
43inch Digital Display Menu Board Description
◉ Great Visibility
With a high brightness of 700 nits HD-E series clearly delivers
contents and attracts public
attention, which is the ultimate display for indoor visibility.
◉ Slim Design
HD-E series attracts attention with elegant design, featuring a
slim bezel and depth thanks to
the ELED backlight module. These displays enhance the visual impact
of the played content
and the store’s overall atmosphere.
◉ Various Mount Options
The HD-E series is lighter and ready to be customized for various
customer needs and settings.
It is also mountable and optimized for customers, based on the
industry purpose and use.
◉ Quiet Operation Fan-less Design
By eliminating the need for a cooling fan, we have made the HD-E
series an ideal choice for
the indoor environment. Its operating noise level is quieter than
that of daily conversation.
Parameter
| Specifications | FSHD430-E |
| PANEL | Screen Size | 43" |
| Panel Technology | IPS, |
| Aspect Ratio | 16:09 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 700 cd/m2 |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
| CONNECTIVITY | Input | HDMI, VGA, USB, Audio |
| Output | / |
| External Control | RS232C Optional |
| PHYSICAL SPECIFICATION | Bezel Color | Black |
| Bezel Width | 7.9mm (T/B/L/R) |
| Monitor Dimension (W x H x D) | 961.0 x 549.7 x 46.2 mm |
| Weight (Head) | 15.0 kg |
| Carton Dimensions (W x H x D) | 1,120 x 710 x 230 mm |
| Packed Weight | 17 kg |
| VESATM Standard Mount Interface | 400 x 400 mm, 4 x M6 |
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C |
| Operation Humidity | 10% to 80% |
| POWER | Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Consumption | Typ. / Max. | 72 W / 80 W |
| Smart Energy Saving | / |
| STANDARD (CERTIFICATION) | Safety | / |
| EMC | FCC Class "A" / CE |
| ACCESSORIES | Optional | Mounting Bracket: wall mount, floor stand, roof hanging |
| Basic | Remote control(w/o battery) ,AC power plug |
| WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
