High Brightness Advertising Sunlight Readable Screen 2500nits LCD
Monitor Shop Window lcd Display

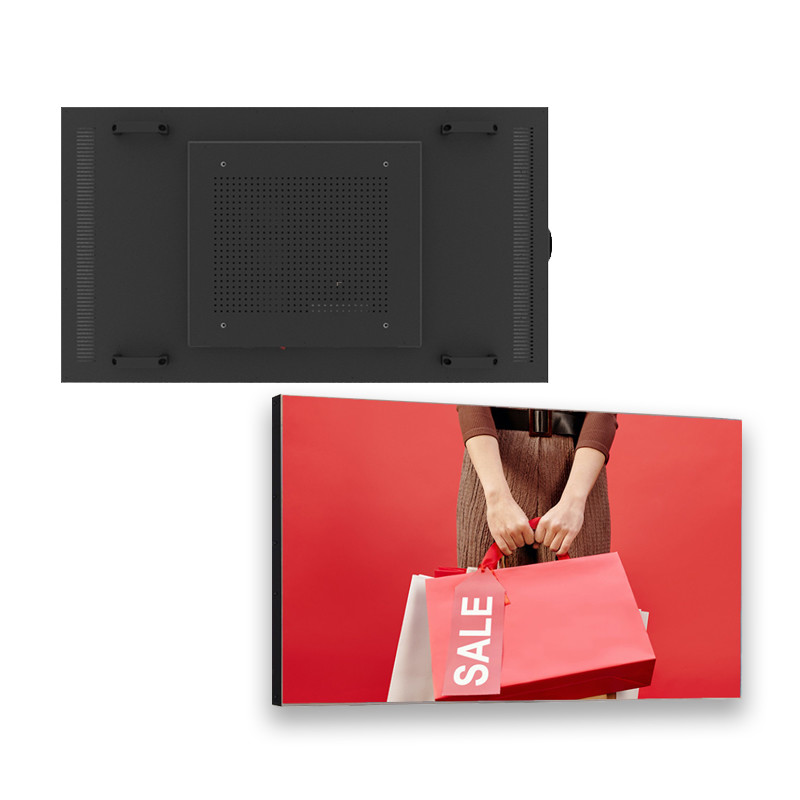

About Fengshi Semi-outdoor Window Advertising LCD Display
The semi-outdoor digital window display, HD series is Fengshi a new
style of window digital display.
You can choose to install the ceiling hanging or floor standing
type. Equipped with a slim design and
frame, and high brightness for application, the window LCD display
shows its unique beauty. The hidden
power socket and WiFi access make the appearance more attractive.
It is the best shopping option for
LCD display windows.
Fengshi makes an innovative leap for in-window display technology.
Every digital signage window display’s
color is calibrated by the factory for remarkable color
reproduction, and the semi-outdoor window display is
featured with high contrast and superb picture quality.
Semi-outdoor Window Advertising LCD Display Features
◉ Shopping window Wide Applications
◉ Flexible installation floor standing or hanging
◉ High brightness screen options between 1000nits – 5000nits
◉ Excellent performance for heat dissipation
◉ Super elegant design with simple but smooth frame
Parameter
| PANEL | 49" | 55" |
| IPS, | IPS, |
| 16:09 | 16:09 |
| 1,920 x 1,080 (FHD) | 1,920 x 1,080 (FHD) |
| 2500 cd/m2 | 2500 cd/m2 |
| 1,300:1 | 1,000:1 |
| 178 x 178 | 178 x 178 |
| Hard coating (2H), Reflection 2.0% (Max.) | Hard coating (2H), Reflection 1.5% (Typ.) |
| 50,000 Hrs Min. | 50,000 Hrs Min. |
| 24 Hrs | 24 Hrs |
| Landscape & Portrait | Landscape & Portrait |
| CONNECTIVITY | HDMI, VGA, USB, Audio | HDMI, VGA, USB, Audio |
| / | / |
| RS232C Optional | RS232C Optional |
| PHYSICAL SPECIFICATION | Black | Black |
| 8.8 mm (T/B), 8.8 mm (L/R) | 8.8 mm (T/B), 8.8 mm (L/R) |
| 739.0 x 433.0 x 85.0 mm | 980.0 x 568.0 x 85.0 mm |
| 25.0 kg | 31.0 kg |
| 1,270 x 790 x 230 mm | 1,390 x 900 x 230 mm |
| 28 kg | 33.0 kg |
| 400 x 400 mm, 4 x M8 | 400 x 400 mm, 4 x M8 |
| ENVIRONMENTAL CONDITIONS | 0°C to 45°C | 0°C to 45°C |
| 10% to 80% | 10% to 80% |
| POWER | Built-In Power | Built-In Power |
| 100-240 V~, 50/60 Hz | 100-240V~, 50/60Hz |
| 144 W / 160 W | 162 W / 180 W |
| / | / |
| STANDARD (CERTIFICATION) | / | / |
| FCC Class "A" / CE | FCC Class "A" / CE |
| ACCESSORIES | Mounting Bracket: wall mount, floor stand, roof hanging | Mounting Bracket: wall mount, floor stand, roof hanging |
| Remote control(w/o battery) ,AC power plug | Remote control(w/o battery) ,AC power plug |
| WARRANTY | 18Month, Free spare parts, Technical support | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in shop window
display LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The shop window display lcd CE-EMC Certificate of Conformity, ISO
certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Shop window display lcd sample testing is acceptable, the price
is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
