43inch high brightness Vertical LCD floor window digital
advertising display
Window Display Screen Description
1. Quiet Operation Fan Cooling :
With a whole depth of 85mm and 18mm bezel, we made the window
display screen series
very space friendly for customers' shop window environment;
Besides, the window display
screen is adopted built-in quiet operation cooling fans, we have
made the HD series window
display screen an ideal choice for the in-window environment. Its
operating noise level is
under 25dB, which is quieter than that of typical daily
conversation.
2. High Visibility Under The Sunlight:
The window display screen remains bright and clear, delivering an
uncompromised picture
that will capture the attention of potential customers – even in
direct sunlight, thanks to the
own design high brightness LED backlight with max. 5000nit. The
window display screen
brightness is automatically adjusted depending on the ambient
light. The brightness is
increased in light for better visibility, while it is decreased in
darkness for efficient power
management. Designed with superior durability for all weather conditions
Industry-leading
widest operating high temperature LCD panel reliable performance
which can leave a deep
impression even in the brightest sunlight, without black mura for
the window lcd display screen.
Window Display Screen Parameter
| Screen Size | 32" | 43" |
| Panel Technology | IPS, | IPS, |
| Aspect Ratio | 16:09 | 16:09 |
| Native Resolution | 1,920 x 1,080 (FHD) | 1,920 x 1,080 (FHD) |
| Brightness | 3,500 cd/m2 | 3,500 cd/m2 |
| Contrast Ratio | 1,300:1 | 1,200:1 |
| Viewing Angle (H x V) | 178 x 178 | 178 x 178 |
| Surface Treatment | Antiglare (Haze 3%), Hard coating (2H) | Antiglare (Haze 1%), Hard coating (3H) |
| Lifetime | 50,000 Hrs Min. | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs | 24 Hrs |
| Orientation | Landscape & Portrait | Landscape & Portrait |
| Input | HDMI, VGA, USB, Audio | HDMI, VGA, USB, Audio |
| Output | / | / |
| External Control | RS232C Optional | RS232C Optional |
| Bezel Color | Black | Black |
| Bezel Width | 18.0 mm (T/B), 18.0 mm (L/R) | 18.0mm (T/B), 18.0mm (L/R) |
| Monitor Dimension (W x H x D) | 739.0 x 433.0 x 85.0 mm | 980.0 x 568.0 x 85.0 mm |
| Weight (Head) | 10.0 kg | 22.0 kg |
| Carton Dimensions (W x H x D) | 890 x 590 x 230 mm | 1,130 x 710 x 230 mm |
| Packed Weight | 12 kg (TBD) | 24.0 kg |
| VESATM Standard Mount Interface | 300 x 200 mm, 4 x M8 | 400 x 300 mm, 4 x M8 |
| Operation Temperature | 0°C to 45°C | 0°C to 45°C |
| Operation Humidity | 10% to 80% | 10% to 80% |
| Power Type | Built-In Power | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz | 100-240V~, 50/60Hz |
| Power Consumption | Typ. / Max. | 100 W / 110 W | 144 W / 160 W |
| Smart Energy Saving | / | / |
| Safety | / | / |
| EMC | FCC Class "A" / CE | FCC Class "A" / CE |
| Optional | Mounting Bracket: wall mount, floor stand, roof hanging | Mounting Bracket: wall mount, floor stand, roof hanging |
| Basic | Remote control(w/o battery) ,AC power plug | Remote control(w/o battery) ,AC power plug |
| WARRANTY | 18Month, Free spare parts, Technical support | 18Month, Free spare parts, Technical support |

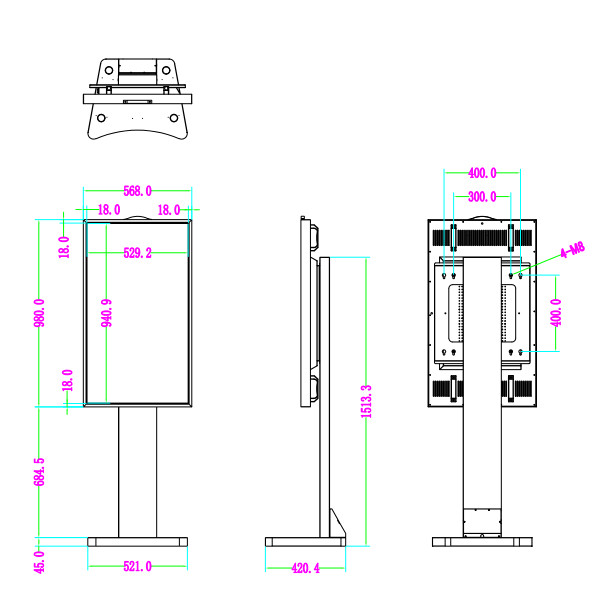

Window Display Screen Drawing
Window Display Screen Scenario
The evolution of advertising displays in retailer’s windows has
dramatically changed over the
years, as well as the expectations of the consumers passing by a
store. Marketing began with
static, printed banners, but quickly moved to digital signage as
consumers became more
responsive to engaging videos and images. However, early digital
signage was not created for
outdoor usage or direct sunlight and produced content with low
visibility. Retailers then began
to incorporate window lcd display, which allowed for better
visibility than the alternatives, but
they were still not powerful enough to display high-quality
content. Although more cost-efficient
than the printed materials, the display did not perform as
expected. Realizing the need for more
innovative window display, Fengshi designed the window lcd display
series. Intended for retailers
to deliver the most visually appealing content in any environment,
the widnow display screen
series surpasses the traditional signage and engages audiences like
never before. they are widely
applied to Financial institutions, Public places, Entertainment and leisure, Commercial institutions,
Industrial sites, Medical places, etc.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high
brightness window display screen
LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery for window lcd display screen.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each window
display screen display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification for window screen display.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Window display screen sample testing is acceptable, the price is
negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
