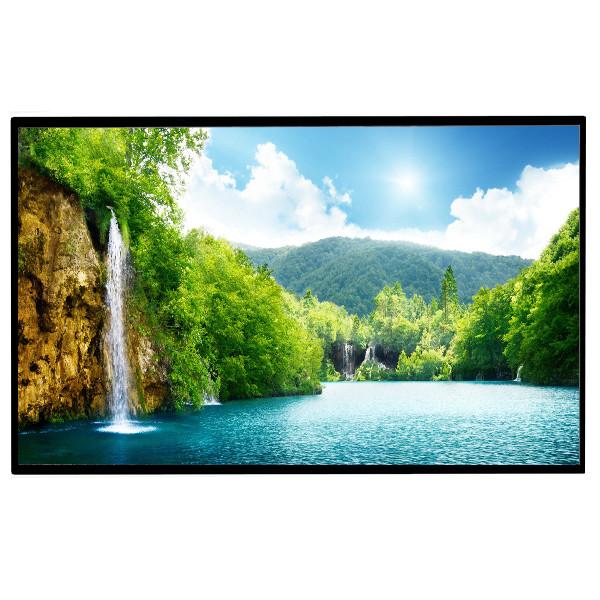

75 inch 3000nits outdoor lcd digital signage open frame lcd monitor
Description
1. High Visibility Under The Sunlight
With a great brightness of 2500/3000 nits. HD series clearly
delivers contents and attracts
public attention, which is ultimate display for outdoor visibility.
2. Smart Brightness Control
The screen brightness is automatically adjusted depending on the
ambient light. The
brightness is increased in light for better visibility, while it is
decreased in darkness for
efficient power management.
3. High Tni110°C LCD Optional
The industrial grade open frame display can choose a high Tni 110 ℃
LCD open cell, it
has superior durability withstand the hard weather condition,and
will be no black mura
occurs when it exposes under the direct sunlight.
4. VESA Mounting, Easy Installation
The open frame display is designed with VESA mounting holes, it can
be installed at any
orientation, as well as in any housing or cabinet. Easy to make it
a finished outdoor display.
5. 24/7 Operation Supported
Business never sleep, to make advantage of superior components to
ensure a higher level
of quality, you can count on this range of models for complete
around-the-c lock reliability,
it's designed for 24/7 operation.
6. Plug & Play
Open frame lcd display integrate the industrial grade power supply
unit and mainboard
inside, easy to install and support plug and play.
Drawing
Scenario
Public areas:
bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .
Amusement areas:
cinemas, gyms, resorts, entertainment venues, foot baths, KTV
bars,beauty salons, etc .;
Commercial institutions:
fast food restaurants, supermarkets, chain stores, 4S
stores,specialty stores, star hotels,
travel agencies, etc .;
Industrial sites:
food processing equipment, machinery control, office automation
equipment, automated
testing,automotive testing equipment, etc .;
Transportation places:
bus station, passenger station, subway, high-speed rail, airport,
etc .;
Medical places:
hospitals, medical institutions, pharmacy chain institutions, etc.
Parameter
Specifications | FSKT750 |
PANEL | Screen Size | 75inch open frame lcd display |
Panel Technology | IPS, |
Aspect Ratio | 16:9 |
Native Resolution | 3,840 x 2,160 (UHD) |
Brightness | 3,000 cd/m2 |
Contrast Ratio | 1,300:1 |
Viewing Angle (H x V) | 178 x 178 |
Surface Treatment | Hard coating (2H), Reflection 2.0% (Max.) |
Lifetime | 50,000 Hrs Min. |
Operation Hours | 24 Hrs |
Orientation | Landscape & Portrait |
CONNECTIVITY | Input | HDMI*2, USB |
Output | / |
External Control | RS232C Optional |
PHYSICAL SPECIFICATION | Bezel Color | Black |
Bezel Width | 15.7 mm (T/L/R), 29.7 mm (B) |
Monitor Dimension (W x H x D) | 1683.1* 975.3*87.0 mm |
VESATM Standard Mount Interface | 710 x 600 mm, 16 x M8 |
ENVIRONMENTAL CONDITIONS | Operation Temperature | 0~45C |
Operation Humidity | 10% to 80% |
POWER | Power Type | Built-In Power |
Power Supply | 100-240 V~, 50/60 Hz |
Power Consumption | Typ. / Max. | 656W |
Smart Energy Saving | / |
STANDARD CERTIFICATION | Safety | / |
EMC | CE |
ACCESSORIES | Basic | Remote control(w/o battery), AC power plug |
WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements. In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI,
VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan
system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped
within 2 weeks.
