32inch 1920*1080 high brightness digital screen advertising double
sided lcd screen
Double Sided LCD Screen Description
Fengshi introduces a revolutionary leap for window-facing display
technology. The dual-sided
professional ultra-high brightness LCD is all-in-one solution
features back-to-back display
surfaces in a single, ultra-slim form factor.
With a sunlight-viewable brightness 3000 nits side and a 1000 nits
brightness side on the
reverse, the double sided lcd screen is an ideal fit for in-window
display applications. Every
display is factory color calibrated for remarkable color
reproduction, high contrast, and superb
picture quality.
1. Sunlight readable brightness 3000nit and 1000nit
2. Viewable with polarized sunglasses
3. industrial grade lcd panel offers 24/7 operation
4. lateral mounting holes design, ceiling or standing acceptable
Double Sided LCD Screen Parameter
| PANEL | Screen Size | 32" | 43" |
| Panel Technology | IPS, | IPS, |
| Aspect Ratio | 16:09 | 16:09 |
| Native Resolution | 1,920 x 1,080 (FHD) | 1,920 x 1,080 (FHD) |
| Brightness | 3,000 + 1,000 cd/m2 | 3,000 + 1,000 cd/m2 |
| Contrast Ratio | 1,300:1 | 1,200:1 |
| Viewing Angle (H x V) | 178 x 178 | 178 x 178 |
| Surface Treatment | Antiglare (Haze 3%), Hard coating (2H) | Antiglare (Haze 1%), Hard coating (3H) |
| Lifetime | 50,000 Hrs Min. | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs | 24 Hrs |
| Orientation | Portrait | Portrait |
| Mainboard | OS | Android 7.1 |
| CPU | Rockchip RK3288, 4-core ARM Cortex A17 clocked at 1.6GHz |
| GPU | 4-core ARM Mali-T764 |
| RAM | DDR3 2GB (Optional 4GB) |
| Storage | eMMC 8GB (Optional 32GB), Note: Support TF / USB expansion |
| CONNECTIVITY | Input | HDMI, RJ45, VGA, USBx2, Audio |
| Output | / |
| External Control | CMS |
| PHYSICAL SPECIFICATION | Bezel Color | Black | Black |
| Bezel Width | 25.0 mm (T/B), 25.0 mm (L/R) | 25.0 mm (T/B), 25.0 mm (L/R) |
| Monitor Dimension (W x H x D) | 791.0 x 444.4 x 80.0 mm | 1,034.0 x 581.0 x 80.0 mm |
| Weight (Include Ceiling Bracket) | 15.0 kg | 28.0 kg |
| Carton Dimensions (W x H x D) | 1,000 x 600 x 230 mm | 1,250 x 730 x 230 mm |
| Packed Weight | 25 kg | 40 kg |
| VESA Standard Mount Interface | See Drawing | See Drawing |
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C | 0°C to 45°C |
| Operation Humidity | 10% to 80% | 10% to 80% |
| POWER | Power Type | Built-In Power | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz | 100-240 V~, 50/60 Hz |
| Power Consumption | Typ. / Max. | 100 W / 110 W | 216 W / 240 W |
| Smart Energy Saving | / | / |
| STANDARD (CERTIFICATION) | Safety | / |
| EMC | FCC Class "A" / CE |
| ACCESSORIES | Optional | Stand Mounts Bracket |
| Basic | Remote control(w/o battery), AC power plug, Ceiling Mounts |
| WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support |

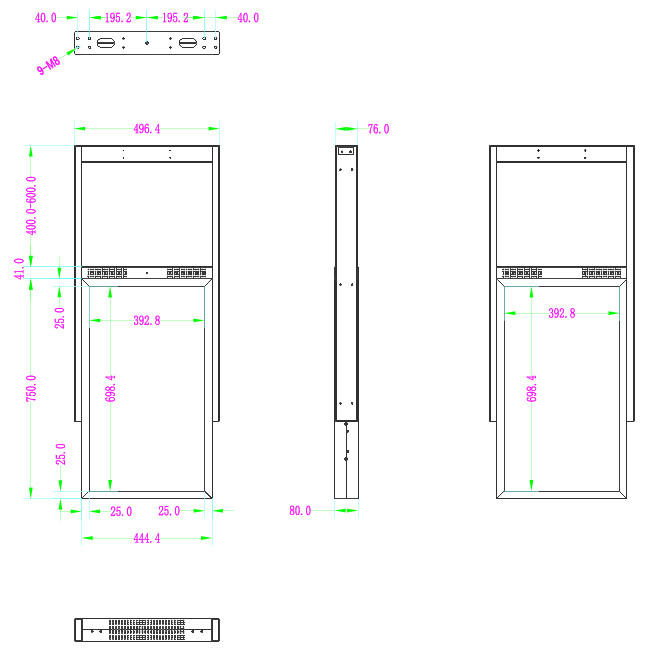

Double Sided LCD Screen Drawing
Double Sided LCD Screen Scenario
A double-sided display offers the flexibility to present different
messaging points to customers
inside as well as potential customers outside. A sunlight-viewable
side shines bright in the
window to allow visibility outdoors, while the reverse side offers
reduced brightness for the
indoor environment. This series double sided lcd screen can be
widely installed at any shop
window:
banks, funds, insurance companies;
bookstores, exhibition halls, museums;
cinemas, fitness gyms, resorts;
Western restaurants, fast food restaurants, supermarkets;
Transportation station, airport.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in double sided
lcd screen LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Double sided lcd screen Sample testing is acceptable, the price
is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
