65inch high brightness UHD Advertising Signage floor double sided
window display
High Brightness Double Sided Display Description
High brightness double-sided displays are a type of LCD display
that have several features
designed to make them suitable for semi-outdoor use and other high
ambient lighting conditions.
1. Sunlight readable brightness, On 65inch, we made it 2500nit
facing outdoor and 700nit
facing indoor. Both sides can deliver clear and vivid image
quality.
2. The double sided display is equiped with ultra quiet cooling
fans for heat dissipation, the
whole machine operate noise is quieter than a normal daily
conversation, we made it a feasible
display solution for an in-window semi-outdoor applications.
3. The front screen OC we adopts LG brand UHD or 3840*2160
industrial grade wide operation
temperature ones, which surface can withstand 110℃, will not go
black under direct sunlight.
4. Slim, light and lateral moutning holes design, the even bezel
18mm, and the whole depth
is 100mm. we made it space friendly for any storefront window.
High Brightness Double Sided Display Parameter
| PANEL | Screen Size | 65" |
| Panel Technology | IPS, |
| Aspect Ratio | 16:09 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 2,500 + 700 cd/m2 |
| Contrast Ratio | 1,100:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Antiglare (Haze 28%), Hard coating (2H) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Portrait |
| Mainboard | OS | Android 7.1 |
| CPU | Rockchip RK3288, 4-core ARM Cortex A17 clocked at 1.6GHz |
| GPU | 4-core ARM Mali-T764 |
| RAM | DDR3 2GB (Optional 4GB) |
| Storage | eMMC 8GB (Optional 32GB), Note: Support TF / USB expansion |
| CONNECTIVITY | Input | HDMI, RJ45, VGA, USBx2, Audio |
| Output | / |
| External Control | CMS |
| PHYSICAL SPECIFICATION | Bezel Color | Black |
| Bezel Width | 18.0 mm (T/B), 18.0 mm (L/R) |
| Monitor Dimension (W x H x D) | 1,524.6 x 843.6 x 100.0 mm |
| Weight (Include Ceiling Bracket) | 70.0 kg |
| Carton Dimensions (W x H x D) | 1,670 x 990 x 230 mm |
| Packed Weight | 75 kg |
| VESATM Standard Mount Interface | See Drawing |
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C |
| Operation Humidity | 10% to 80% |
| POWER | Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Consumption | Typ. / Max. | 585 W / 650 W |
| Smart Energy Saving | / |
STANDARD
(CERTIFICATION) | Safety | / |
| EMC | FCC Class "A" / CE |
| ACCESSORIES | Optional | Stand Mounts Bracket |
| Basic | Remote control(w/o battery) ,AC power plug, Ceiling Mounts |
| WARRANTY | | 18Month, Free spare parts, Technical support |

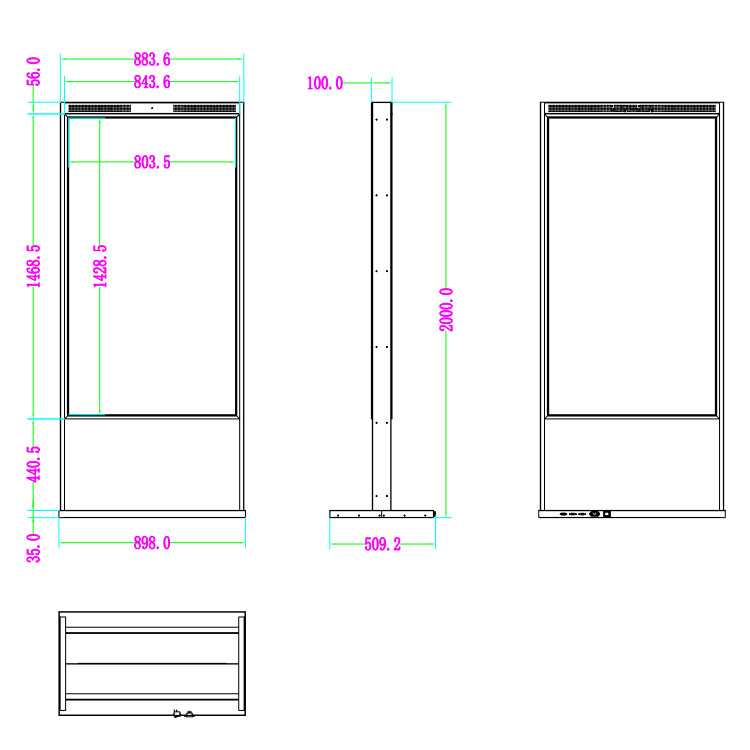

High Brightness Double Sided Display Drawing
High Brightness Double Sided Display Scenario
high brightness double-sided displays are designed to provide clear
and visible content in a
range of high ambient lighting conditions, making them an ideal
choice for
1. banks, securities, funds, insurance companies, pawn shops
2. bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .;
3. Western restaurants, fast food restaurants, supermarkets, chain
stores, 4S stores,specialty
stores, star hotels, travel agencies, drug stores, etc .;
4. hospitals, medical institutions, pharmacy chain institutions, etc.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high
brightness double sided display LCD
panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from the
date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6. Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7. Q: What is the MOQ?
A: High brightness double sided display sample testing is
acceptable, the price is negotiable for
bulk order.
8. Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
