65inch indoor digital signage display 3840*2160 high brightness
Double Sided screen
Description
1. Double Sided High Visibility Display :
The window-facing side’s 3000nit brightness helps maintain picture
integrity regardless of
sunlight, while the in-store side features 1000nit, delivering
information clearly.
2. Quiet Operation Fan Cooling :
By the built-in quiet operation cooling fans, we have made the HD
series an ideal choice for
the in-window environment. Its operating noise level is under 25dB,
which is quieter than that
of typical daily conversation.
3. High TNI 110℃ LCD:
Designed with superior durability for all weather conditions
Industry-leading widest operating
high temperature LCD panel reliable performance which can leave a
deep impression even
in the brightest sunlight, without black mura.
4. Modernize and Slim Design:
The DB Series can be easily mounted on a stand or hung from a
ceiling, giving retailers more
options for positioning. The smart design creates a clean look and
offers flexibility in how valuable
floor space is designed and utilized.

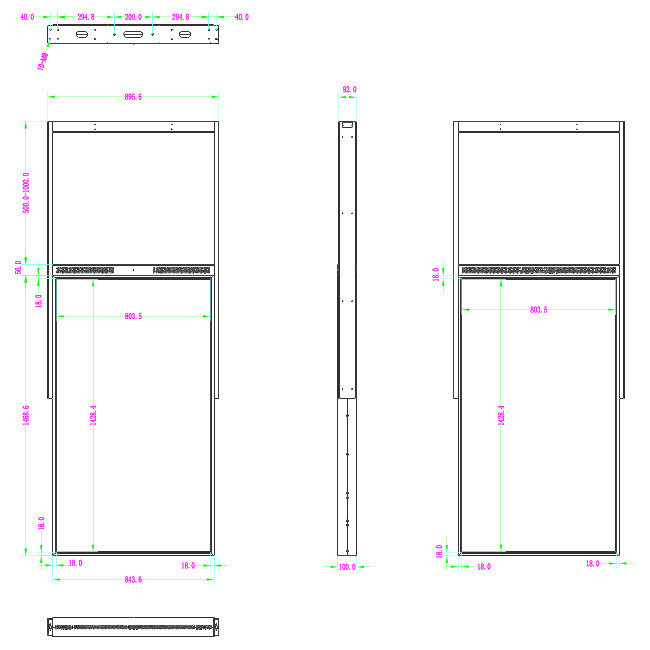

Drawing
Scenario
Financial institutions:
banks, securities, funds, insurance companies, pawn shops, etc .;
Public places:
bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .;
Industrial sites:
food processing equipment, machinery control, office automation
equipment, automated
testing,automotive testing equipment, etc .;
Commercial institutions:
Western restaurants, fast food restaurants, supermarkets, chain
stores, 4S stores,specialty
stores, star hotels, travel agencies, drug stores, etc .;
Medical places:
hospitals, medical institutions, pharmacy chain institutions, etc.
Transportation place:
bus station, passenger station, subway, high-speed rail, airport,
etc .;
Parameter
| Specifications | FSDB650 |
| PANEL | Screen Size | 65" |
| Panel Technology | IPS, |
| Aspect Ratio | 16:09 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 3000 + 1000 cd/m2 |
| Contrast Ratio | 1,100:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Antiglare (Haze 28%), Hard coating (2H) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Portrait |
| Mainboard | OS | Android 7.1 |
| CPU | Rockchip RK3288, 4-core ARM Cortex A17 clocked at 1.6GHz |
| GPU | 4-core ARM Mali-T764 |
| RAM | DDR3 2GB (Optional 4GB) |
| Storage | eMMC 8GB (Optional 32GB), Note: Support TF / USB expansion |
| CONNECTIVITY | Input | HDMI, RJ45, VGA, USBx2, Audio |
| Output | / |
| External Control | CMS |
| PHYSICAL SPECIFICATION | Bezel Color | Black |
| Bezel Width | 18.0 mm (T/B), 18.0 mm (L/R) |
| Monitor Dimension (W x H x D) | 1,524.6 x 843.6 x 100.0 mm |
| Weight (Include Ceiling Bracket) | 70.0 kg |
| Carton Dimensions (W x H x D) | 1,670 x 990 x 230 mm |
| Packed Weight | 75 kg |
| VESATM Standard Mount Interface | See Drawing |
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C |
| Operation Humidity | 10% to 80% |
| POWER | Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Consumption | Typ. / Max. | 585 W / 650 W |
| Smart Energy Saving | / |
| STANDARD (CERTIFICATION) | Safety | / |
| EMC | FCC Class "A" / CE |
| ACCESSORIES | Optional | Stand Mounts Bracket |
| Basic | Remote control(w/o battery) ,AC power plug, Ceiling Mounts |
| WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
