32 inch 2500nits window facing display high brightness advertising
lcd
Single Sided Window LCD Display Description
1. High Visibility Under The Sunlight :
With a great brightness of 2,500/3000 nits HD series clearly
delivers contents and attracts
public attention, single sided window lcd displaywhich is the
ultimate display for outdoor
visibility. The window lcd display addresses energy efficiency by
consuming less power than
conventional displays* while delivering a brilliant picture and
spectacular performance. As a
result, retailers are equipped with a superior, more engaging
display that offers greater
control over costs.
2. Smart Brightness Control and High TNI 110℃ LCD
The single sided window lcd display screen brightness is
automatically adjusted according
to the ambient brightness. The brightness is increased in light for
better visibility, while it is
decreased in darkness for efficient power management. Also, proprietary functionality that
mitigates overheating, the OMN-S series continuously provides
robust durability panel
reliable performance which can leave a deep impression even in the
brightest sunlight, with-
out black mura under opencell surface temperature 110℃.
3. Visible with Polarized Sunglasses
Quater Wave Plate technology enables clear visibility even when the
viewer is wearing
polarized sunglasses.
Drawing
Scenario
window lcd display series was designed with a storefront window
display in mind. It projects
clear, bright images that attract and engage audiences, increasing
the probability of an in-store
visit, from cinemas, fitness gyms, resorts, entertainment venues, foot baths,
KTV bars,beauty
salons, golf courses, restaurants, fast food restaurants, supermarkets, chain stores, 4S
stores,
specialty stores, star hotels, travel agencies, drug stores, food processing equipment, machinery
control, office automation equipment, automated testing,automotive testing equipment, etc .;
Parameter
| Model | FSHD320 |
| Panel | Size(Diagonal) | 32 inch single sided window lcd display |
| Resolution | 1920*1080 |
| Aspect Ration | 16:9 |
| Beightness(Typ.) | 2500nits |
| Contrast Ratio | 1300:1 |
| Connectivity | Input | HDMI/VGA/USB |
| Physical SPEC | Bezel Color | Black |
| Bezel Width | 18.0mm(T/B/L/R) |
| Dimension | 739.0 x 433.0 x 85.0 mm |
| Carton Dimension | 890 x 590 x 230 mm |
| Net Weight | 10kg |
| Gross Weight | 12kg |

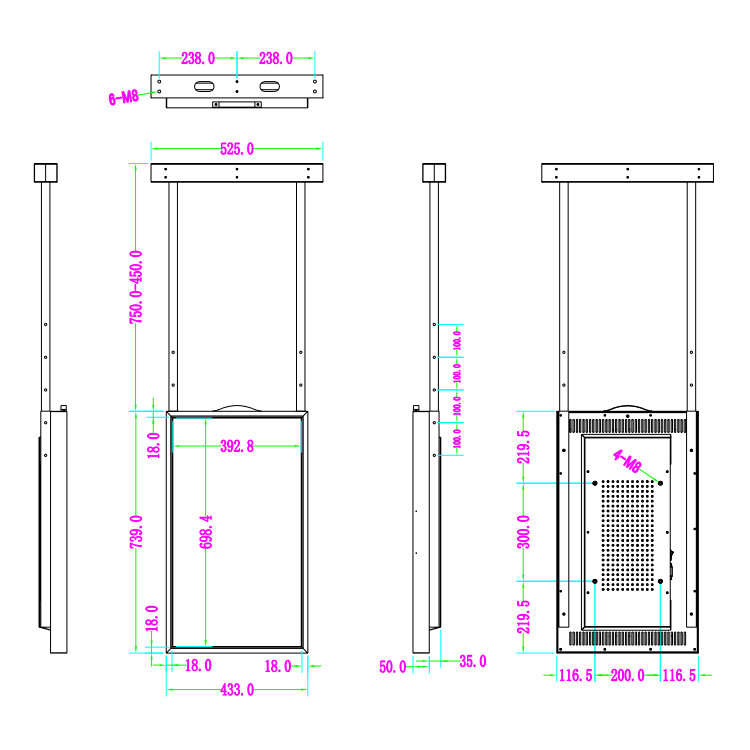

| Mounting Hole | See Drawing |
| Operation Condition | Temperature | 0~45 ℃ |
| Humidity | 10~80% |
| Power | Input Supply | 100-240 V~, 50/60 Hz |
| Consumption | 100 W / 110 W |
STANDARD (CERTIFICATION) | Safety | / |
EMC | FCC Class "A" / CE |
ACCESSORIES | Optional | Mounting Bracket: wall mount, floor stand, roof hanging |
Basic | Remote control(w/o battery) ,AC power plug |
WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high
brightness single sided window lcd
display since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from the
date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Single sided Window Facing Displays: LCD Panel+PSU+AD board
(network board optional)+
fan system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can
guarantee each single sided
window facing lcd display will pass through strict quality
inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Single sided window lcd display Sample testing is acceptable,
the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
