43inch high brightness digital screen advertising double sided
digital window lcd display
Double Sided Window LCD Display Description
This double sided hanging digital window lcd display is perfectly
designed for shop windows;
with a standard brightness digital screen facing inwards
(1000cd/m2) and an enhanced
brightness digital screen facing outwards (3000cd/m2) to be
sunlight readable. Featuring an
integrated wire hanging ceiling mount, the super slim hanging
display, which is just 80mm depth,
frees up precious floor space within shops for merchandise
displays. Unsightly power cables
can also be discreetly hidden within the cover tubes provided for a
professional and polished
finish.
1. built-in Android mainboard
2. FHD resolution
3. 24/7 operation
4. industrial grade high tni 110℃ OC
5. auto-dimming sensor
6. ceiling or floor standing available
7. quiet fans cooling
Double Sided Window LCD Display Parameter
| Screen Size | 43" |
| Panel Technology | IPS, |
| Aspect Ratio | 16:09 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 3,000 + 1,000 cd/m2 |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Portrait |
| OS | Android 7.1 |
| CPU | Rockchip RK3288, 4-core ARM Cortex A17 clocked at 1.6GHz |
| GPU | 4-core ARM Mali-T764 |
| RAM | DDR3 2GB (Optional 4GB) |
| Storage | eMMC 8GB (Optional 32GB), Note: Support TF / USB expansion |
| Input | HDMI, RJ45, VGA, USBx2, Audio |
| Output | / |
| External Control | CMS |
| Bezel Color | Black |
| Bezel Width | 25.0 mm (T/B), 25.0 mm (L/R) |
| Monitor Dimension (W x H x D) | 1,034.0 x 581.0 x 80.0 mm |
| Weight (Include Ceiling Bracket) | 28.0 kg |
| Carton Dimensions (W x H x D) | 1,250 x 730 x 230 mm |
| Packed Weight | 40 kg |
| VESA Standard Mount Interface | See Drawing |
| Operation Temperature | 0°C to 45°C |
| Operation Humidity | 10% to 80% |
| Power Type | Built-In Power |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Consumption | Typ. / Max. | 216 W / 240 W |
| Smart Energy Saving | / |
| Safety | / |
| EMC | FCC Class "A" / CE |
| Optional | Stand Mounts Bracket |
| Basic | Remote control(w/o battery), AC power plug, Ceiling Mounts |
| WARRANTY | 18Month, Free spare parts, Technical support |
Double Sided Window LCD Display Drawing

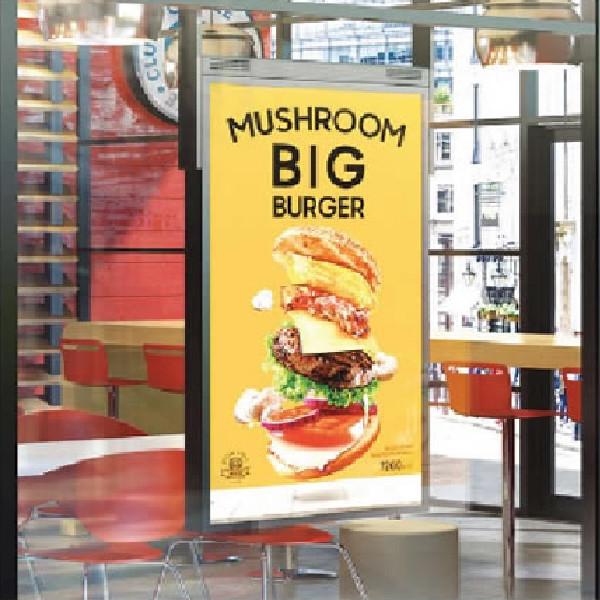

Double Sided Window LCD Display Scenario
The double sided window lcd displays are perfect for a variety of
businesses, including:
1. museums, exhibition halls
2. retail stores, restaurants
3. hotels, supermarkets
4. banks, conference rooms, classrooms
5. subway stations, airports
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in double side
window lcd display LCD
panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Double sided window lcd display Sample testing is acceptable,
the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
