55inch 5000nits industrial grade sunlight readable window LCD
display signage
Shop Window Dipsplay LCD Description
1. High Visibility Under The Sunlight:
Stay visible day and night with Fengshi window facing LCD display.
Astonishing clarity and
contrast make this a perfect solution for busy areas that are
subject to high ambient light.
From airports to shopping centres. With a great brightness of 5000
nits(Max.) HD series
shop window display lcd clearly delivers contents and attracts
public attention, which is the
ultimate display for outdoor visibility. Even in direct sunlight,
the widnow lcd display series
delivers exceptional picture quality with optimal brightness and
high contrast ratio for an
uncompromised customer viewing experience.window display remains
bright and clear,
delivering an uncompromised picture that will capture the attention
of potential customers –
even in direct sunlight.
2. High TNI 110℃ LCD:
Designed with superior durability for all weather conditions
Industry-leading widest operating
high temperature LCD panel reliable performance which can leave the
shop window display
lcd a deep impression even in the brightest sunlight, without black
mura. proprietary
functionality that mitigates overheating, the OMN-S series
continuously provides robust
durability.
3. Quiet Operation Fan Cooling:
By the built-in quiet operation cooling fans, we have made the HD
series shop window display
LCD an ideal choice for the in-window environment. Its operating
noise level is under 25dB,
which is quieter than that of typical daily conversation.
4. 8.8mm Slim Bezel Design :
HD series shop window display lcd attracts attention with elegant
design, featuring a slim
bezel and depth. These displays enhance the visual impact of the
played content and the
store’s overall atmosphere. Its compact size makes the display a
natural extension of the
store, as opposed to an addition that ties up valuable space.
Shop Window Display LCD Parameter
| Specifications | FSHD550 |
| PANEL | Screen Size | 55inch shop window display lcd |
| Panel Technology | IPS, |
| Aspect Ratio | 16:09 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 5000 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Hard coating (2H), Reflection 1.5% (Typ.) |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
| CONNECTIVITY | Input | HDMI, VGA, USB, Audio |
| Output | / |
| External Control | RS232C Optional |
| PHYSICAL SPECIFICATION | Bezel Color | Black |
| Bezel Width | 8.8 mm (T/B), 8.8 mm (L/R) |
| Monitor Dimension (W x H x D) | 980.0 x 568.0 x 85.0 mm |
| Weight (Head) | 31.0 kg |
| Carton Dimensions (W x H x D) | 1,390 x 900 x 230 mm |
| Packed Weight | 33.0 kg |
| VESATM Standard Mount Interface | 400 x 400 mm, 4 x M8 |
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C |
| Operation Humidity | 10% to 80% |
| POWER | Power Type | Built-In Power |
| Power Supply | 100-240V~, 50/60Hz |
| Power Consumption | Typ. / Max. | 162 W / 180 W |
| Smart Energy Saving | / |
| STANDARD (CERTIFICATION) | Safety | / |
| EMC | FCC Class "A" / CE |
| ACCESSORIES | Optional | Mounting Bracket: wall mount, floor stand, roof hanging |
| Basic | Remote control(w/o battery) ,AC power plug |
| WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support
|

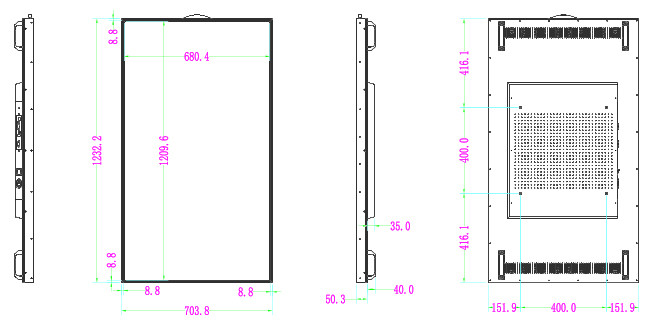

Drawing
Scenario
Rich, digital content is the new norm. Static, printed billboards
and signs lack the dynamic
motion necessary to quickly attract the attention of passersby. As
retailers are trying to win
the attention of the consumer, it is vital to stand out amongst the
competition. That is why a
growing trend in the retail industry is the introduction of digital
signage into window storefronts.
Retail organizations have a very narrow window to impress, so it is
critical that a customer’s first
impression is immediately dazzling. Retailers need digital displays
with high visibility and easy-
to-manage software to deliver highly impactful content that remains
bright and crisp even in the
face of direct sunlight –a challenge many stores face. The shop
window display LCD is widely
installed at banks, securities, funds, insurance companies, pawn shops, bookstores, exhibition
halls, stadiums, museums, conference centers, talent markets, hospitals, medical institutions,
pharmacy chain institutions, etc.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in shop window
display LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your require
-ments.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The shop window display lcd CE-EMC Certificate of Conformity, ISO
certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Shop window display lcd sample testing is acceptable, the price
is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
