65inch 2500cd/m2 Industrial Grade High Tni LCD outdoor panel
Display
Industrial Grade LCD Panel Description
1. High Tni110℃ LCD
The industrial grade lcd panel design with high tni 110℃ LCD
opencell. it's superior durability
for hard weather conditions, and there will be no black mura even
expose the direct sunlight.
2. 24/7 Operation Supported
Business never sleep, to take advantage of superior components to
ensure a higher level of
quality, you can count on this range of models for complete
around-the-clock reliability. It's
designed for 24/7 operation.
3. Smart Brightness Control
All large size LCD panel has equip a light sensor which can adjust
the led backlight brightness
at a range of 30~100% according to the ambient brightness.
4. VESA Mounting, Easy Installation
The large size LCD panel adops VESA mounting holes, it's customer
convenient to install it
in any orientation, or any housing, cabinet to make it a complete
outdoor display.
Industrial Grade LCD Panel Parameter
| Model |
| Item | 65.0'' high brightness industrial grade LCD panel |
| Model | FS650-D30-PD-4K | FS650-D20-PD-4K |
| Dimensions |
| Screen Size | 65 inches | 65 inches |
| Display Area | 1428.4*803.5mm | 1428.4*803.5mm |
| Outline Dimenssion | 1458*833*66.5mm | 1458*833*66.5mm |
| Weight | 31kg | 31kg |
| LCD OC |
| Panel Type | High brightness LCD with WLED | High brightness LCD with WLED |
| Configuration | RGBW Vertical Stripe | RGBW Vertical Stripe |
| Resolution | 3840*2160pixel | 3840*2160pixel |
| Brightness | 3000nits | 2000nits |
| Aspect Ratio | 16:9 | 16:9 |
| Constrast Ratio | 1200:1 (Typ.) (TM) | 1200:1 (Typ.) (TM) |
| Response Time | 6ms (Typ.)(G to G) | 6ms (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | 89/89/89/89 (Min.)(CR≥10) |
| Driver Elements | a-Si TFT-LCD | a-Si TFT-LCD |
| Surface Treatment | Antiglare (Haze 3%), Hard coating (2H) | Antiglare (Haze 3%), Hard coating (2H) |
| Display Color | 1.07B | 1.07B |
| Display Mode | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive |
| Interface Type | V-by-One 8 lane , Connector , 51 pins | V-by-One 8 lane , Connector , 51 pins |
| Power |
| Input Voltage | DC24V | DC24V |
| Power | 500W | 330W |
| Backlit Lifetime | 50000hrs | 50000hrs |
| Temperature |
| OC Surface Resist | 110°C | 110°C |
| Operating Temp. | 0°- 50°C | 0°- 50°C |
| Storage Temp. | -20°- 60°C | -20°- 60°C |

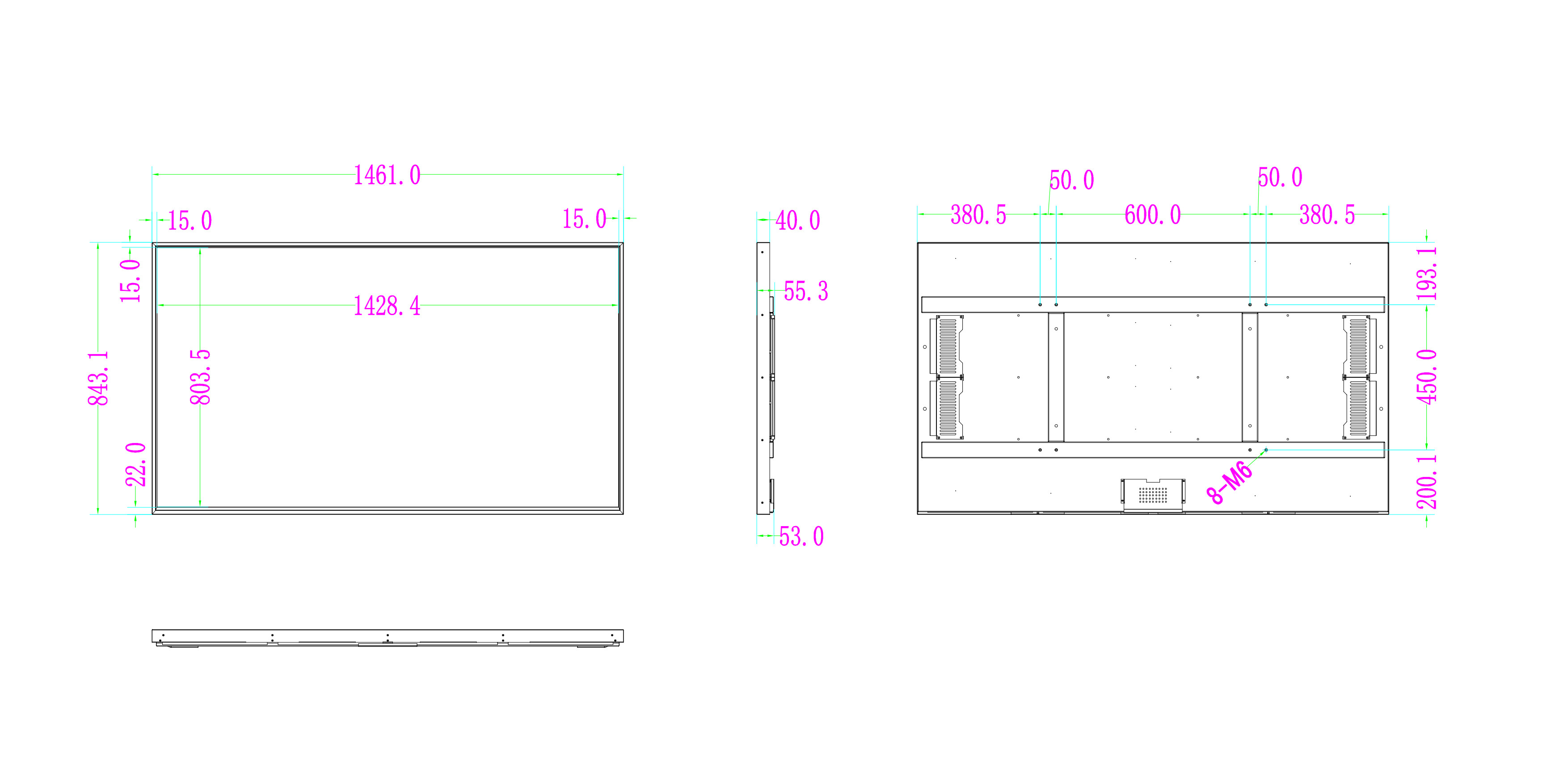

Industrial Grade LCD Panel Drawing
Industrial Grade LCD Panel Scenario
Industrial grade LCD panels are purpose-built for applications in
industrial environments, where
they need to withstand extreme temperatures, humidity, and
mechanical stress. Industrial grade
LCD panels are used in outdoor signage applications, such as in billboards and digital kiosks,
where they need to withstand exposure to sunlight, rain, and other
environmental factors.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in industrial
grade LCD panel/LCM since
2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays:LCD Panel+PSU+AD board(optional
interface, eg:HDMI, VGA,
DVI, USB...)+Touch optional.
(3) Window Facing Displays:LCD Panel+PSU+AD board (network board
optional)+fan system
+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A:Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6. Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black
over 105 or 110℃.
7. Q: What is the MOQ?
A: Industrial grade lcd panel sample testing is acceptable, the
price is negotiable for bulk order.
8. Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped with 2 weeks.
