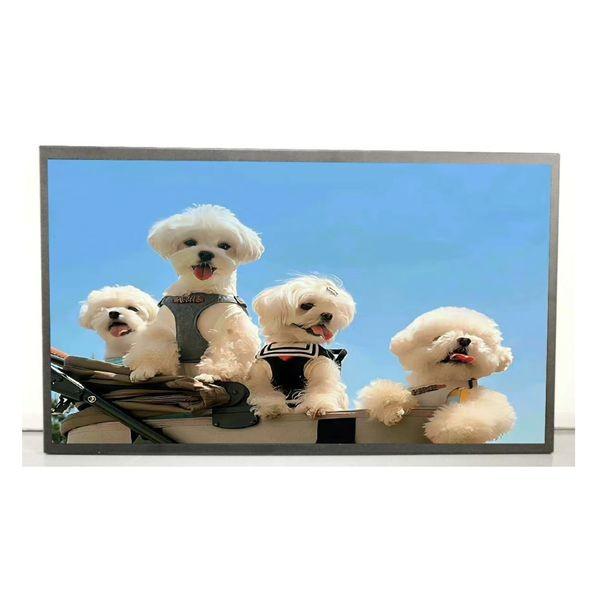

27 inch 1000nits industrial high tni lcd monitor lcd advertising
display panel
Industrial Advertising Display Panel Description
An industrial advertising display panel is designed for use in
outdoor and commercial settings
to display advertisements and other promotional content. It's
featured high brightness LED
backlight, wide operation temperature OC, IPS wide viewing angle
1. High brightness LED backlight module, Aluminum structure, light
weight and effective heat
dissipation effort.
2. Wide operation temperature OC, with BOE brand high TNI OC,
operation temperature range
is -20~80℃, surface resistant 105℃.
3. IPS wide viewing angle, left/right/top/bottom each direction is
89°, make sure the contents can
be seen from everywhere.
Industrial Advertising Display Panel Parameter
| Item | 27.0'' high brightness LCD panel |
| Model | FS270-E10-PD |
| Screen Size | 27 inches |
| Display Area | 597.9*336.3mm |
| Outline Dimenssion | 627.2*365.6*17.7mm |
| Panel Type | High brightness LCD with WLED |
| Configuration | RGB Vertical Stripe |
| Resolution | 1920*1080pixel |
| Brightness | 1000nits |
| Aspect Ratio | 16:9 |
| Constrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 14ms (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥20) |
| Driver Elements | a-Si TFT-LCD |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Display Color | 16.7M 99% (CIE1931) |
| Display Mode | FFS, Normally Black, Transmissive |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins , Connector |
| Input Voltage | DC12V |
| Power | 42W |
| Weight | 3kg |
| Backlit Lifetime | 50000hrs |
| Operating Temp. | -20°- 80°C |
| Storage Temp. | -30°- 80°C |
Industrial Advertising Display Panel Drawing
Industrial Advertising Display Panel Scenario
Industrial advertising displays can be used in a variety of
applications, including:
1. Industrial advertising displays are commonly used in retail
applications to promote products
and services, display information, and provide wayfinding
information.
2. Hosipitality: such as hotels, restaurants, and bars, to display
menus, promotions, and other
information.
3. Transportation: such as airports, train stations, and bus
terminals, to display arrival and
depature information, wayfinding information, and promotional
content.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in industrial
advertising display panel LCD
panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg:
HDMI, VGA,DVI, USB...)+Touch optional.
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)
+fan system+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Industrial advertising display panel sample testing is
acceptable, the price is negotiable
for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped with 2 weeks.
