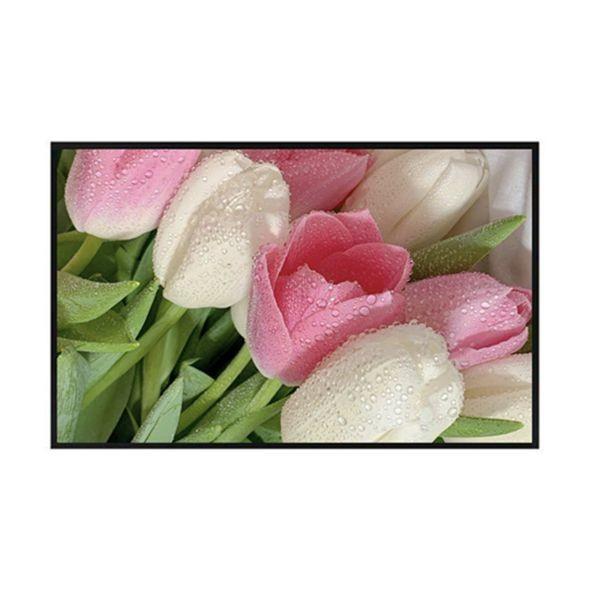

32 inch large outdoor screen sunlight readable lcd panel display
monitor
Large Outdoor LCD Display Description
1. Own Design LED Back Light Structure
the large size sunlight readable outdoor LCD panel are using our
own design Alumium
DLED backlight stracture, which is more light and effective heat
dissipation, this makes
the large size panel better brightness uniformity and longevity
life span. On the other
hand, with a high brightness of 3500/5000nits, the large size lcd
panel clearly deliver
contents and public attentions, With is the ultimate display for
outdoor applications.
2. Easy Installation
All the large size LCD panel has equip a light sensor which can
adjust the led backlight
brightness at a range of 30~100% according to the ambient
brightness. In addition, the
large size lcd panel adopts VESA mounting holes, it's customer
convenient to install it in
any orientation, or any housing, cabinet to make it a complete
outdoor display.
Outdoor LCD Display Parameter
| Model | Item | 32.0'' high brightness LCD panel |
| Model | FS320-D20-Z |
| Dimensions | Screen Size | 32 inches |
| Display Area | 698.4*392.8mm |
| Outline Dimenssion | 725.2*424.4*53.1mm |
| LCD OC | Panel Type | High brightness LCD with WLED |
| Configuration | RGBW Vertical Stripe |
| Resolution | 1920*1080pixel |
| Brightness | 2000nits |
| Aspect Ratio | 16:9 |
| Constrast Ratio | 1400:1 (Typ.) (TM) |
| Response Time | 6 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Driver Elements | a-Si TFT-LCD |
| Surface Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Display Color | 16.7M |
| Display Mode | IPS, Normally Black, Transmissive |
| Interface Type | LVDS (2 ch, 8-bit) , Connector , 51 pins |
| Power | Input Voltage | DC24V |
| Power | 100W |
| Weight | Weight | 4.1kg |
| Lifetime | Backlit Lifetime | 50000hrs |
| Temperature | Operating Temp. | 0°- 50°C |
| Storage Temp. | -20°- 60°C |
Drawing
Scenario
Our high brightness LCD panel provide a bright and high performance
solution for indoor and
outdoor locations capturing attention and boosting brand or
products awareness.
Application place: shoping mall, various stores, bus/train subway stations, drive thru, meeting
room, education field, edcation field and more.
Point of sale: hospitality, digital signage, self-service kiosks,
indoor and outdoor kiosks.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in large size
high brightness outdoor LCD
panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your
requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays:LCD Panel+PSU+AD board(optional
interface, eg:HDMI, VGA,
DVI, USB...)+Touch optional.
(3) Window Facing Displays:LCD Panel+PSU+AD board (network board
optional)+fan system
+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A:Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each sunlight
readable outdoor lcd display will pass through strict quality
inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sunlight readable large lcd display sample testing is
acceptable, the price is negotiable for
bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped with 2 weeks.
