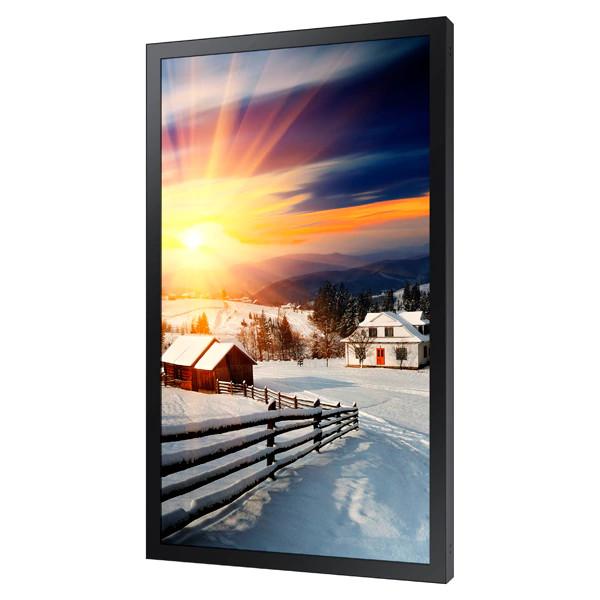

55 inch OD Series 24/7 work customized sunlight readable ultra
brightness
5000 nit lcd outdoor advertising tv display
Description
1. High brightness 3000nits-5000nits
The OD series possess powerful brightness of 5000 nits, providing
clear and vivid picture quality
even under direct sunlight.
2. Automatic dimming sensor
The brightness will be varied with the brightness of the
environment.
3. Industrial grade 110℃ high Tni panel, wide viewing angle
IPS technology provides better control of the liquid crystals,
which in turn allows the screen to be
viewed at virtually any angle.
4.Full optical bonding in front of the screen, IP56 protection
level
Each OD Series display undergoes rigorous IP56 ingress defense
testing to ensure resistance to
dust, heat, moisture and other environmental variables that can
impede operations. This includes
an integrated self-cooling system that keeps the OD Series displays
running in temperatures ranging
from -30oC (-22oF) to 50oC(122oF). In turn, operators can feel
confident in the displays’ ability to
perform 24/7, and without requiring expensive external cooling
systems or security measures.
5. Intelligent temperature control, cooling fan system
Drawing
Parameter
| Diagonal Size | 55 |
| Size Mearsure | 54.6" / 138.7cm |
| Resolution | 1920x1080 (16:9) |
| Pixel Pitch(mm) | 0.630 x 0.630 |
| Active Display Area(mm) | 1209.60(H) x 680.40(V) |
| Brightness(Typ.) | 5,000 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Viewing Angle(H/V) | 178/178 |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 7*24 |
| Haze | 2% |
| Dynamic C/R | 100,000:1 |
| Speaker Type | N/A |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), |
| 50/60 Hz |
| Max[W/h] | TBD |
| Dimension (mm) | 1281.2 x 752.0 x 95.5 mm |
| 1410 x 1000 x 260 mm |
| Weight (kg) | 49.0kg |
| 78.0kg |
| Mounting Hole | 1170 x 560 (Basic) |
| 1200 x 400 (VESA Bracket-et Option) |
| Protection Glass | 5mm |
| Bezel Width (mm) | Even 33.8 mm |
| Operating Temperature | -30℃~ 50℃ |
| Humidity | 10~100% (Non-condensing) |
| IP Certificate | IP56 |
| Processor Coretex | Rockchip RK3288 Coretex A17 1.8GHz |
| Memory Interface | HYNIX DDR3 2GB |
| Storage | 8GB |
| Operating System | Android 7.1 |
Multimedia
Video Decoder | MPEG-1/2/4, H.264, WMV,WKV,TS,FLV |
| JPEG, PNG, BMP, PNG,GIF |
| MP3 |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from the date of
delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA, DVI,
USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+tem-
perature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
