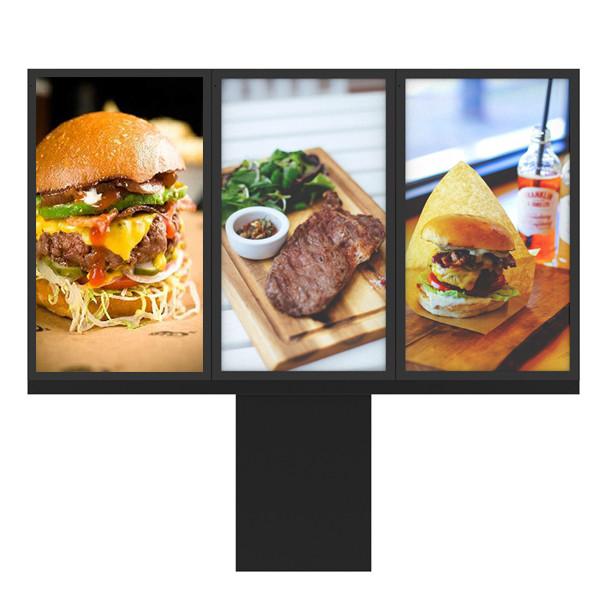

55inch 3000nits spliced 3 screens digital menu board outdoor
advertising display
Description
1. High brightness, automatic photosensitive :
High brightness with 3000nits to be sunlight readable for outdoor
use, the auto-dimming sensor
will change the brightness from the ambient light
2. Industrial grade 110℃ high temperature resistant panel
3. Full optical bonding in front of the screen
4. IP56 waterproof level
5. Intelligent temperature control, cooling fan
6. Can be spliced in one screen/two screens/three screens
Drawing
Parameter
| Diagonal Size | 55 |
| Size Mearsure | 54.6" / 138.7cm |
| Resolution | 1920x1080 (16:9) |
| Pixel Pitch(mm) | 0.630 x 0.630 |
| Active Display Area(mm) | 1209.60(H) x 680.40(V) |
| Brightness(Typ.) | 3,000 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Viewing Angle(H/V) | 178/178 |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 7*24 |
| Haze | 2% |
| Dynamic C/R | 100,000:1 |
| Speaker Type | N/A |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), |
| 50/60 Hz |
| Max[W/h] | 298 |
| Dimension (mm) | 1281.2 x 752.0 x 95.5 mm |
| 1410 x 1000 x 260 mm |
| Weight (kg) | 49.0kg |
| 78.0kg |
| Mounting Hole | 1170 x 560 (Basic) |
| 1200 x 400 (VESA Bracket-et Option) |
| Protection Glass | 5mm |
| Bezel Width (mm) | Even 33.8 mm |
| Operating Temperature | -30℃~ 50℃ |
| Humidity | 10~100% (Non-condensing) |
| IP Certificate | IP56 |
| Processor Coretex | Rockchip RK3288 Coretex A17 1.8GHz |
| Memory Interface | HYNIX DDR3 2GB |
| Storage | 8GB |
| Operating System | Android 7.1 |
Multimedia
Video Decoder | MPEG-1/2/4, H.264, WMV,WKV,TS,FLV |
| JPEG, PNG, BMP, PNG,GIF |
| MP3 |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or
18months(Non-artificial damages) from the date of
delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available
based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto
dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional
interface, eg: HDMI, VGA, DVI,
USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board
optional)+fan system+tem-
perature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function,
IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC
certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black
over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk
order shipped within 2 weeks.
